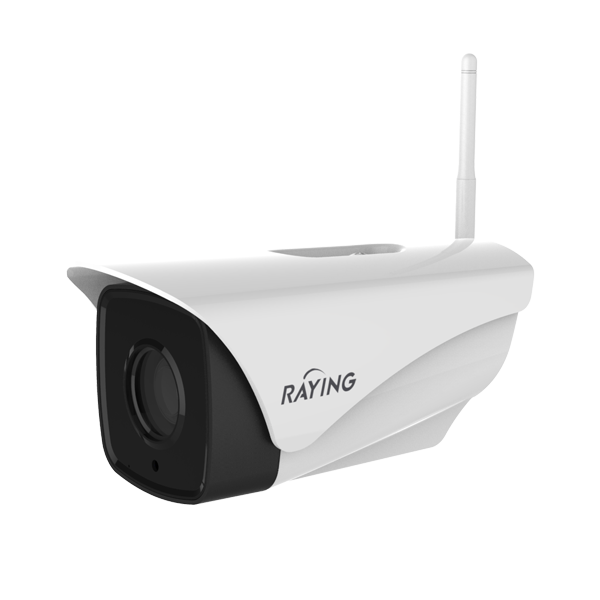

400W ITMS Micro-Bayonet Tube Camera
STD-934311-L(F3610)
It is suitable for scenes needing face recognition or need high-definition picture quality, such as lighting projects, communities, shops, supermarkets, hotels, banks, train stations, bus stations, airports, subways, governments, hospitals, schools, buildings, public security skynet, etc.
Product highlights
  • Product description
  • Product parameters
  • Product Size
  • Data download

Intelligent function

l   Innovative professional intelligent transportation business concept and solution;

l   The use of high-performance intelligent chips greatly improves the capture rate based on deep learning intelligent algorithms and capture information extraction;

l   Snapshots of motor vehicles, non-motor vehicles, and pedestrians with the function of docking bayonet;

l   Fully-embedded integrated component-based design; conduct flow data detection, behavior analysis, event detection and information recognition;

l   Support video/picture with watermark and verification function;

Basic functions

l   Adopt high-performance 4-million pixel 1/1.8" CMOS image sensor, with high definition, starlight level low illumination, high frame rate, good color reproduction

l   Support up to 2560*1440@30fps HD image output, support three-code stream technology. Each stream can be independently configured with resolution and frame rate

l   Support H.264, H.265, adaptive (SVC) encoding format, suitable for different bandwidths and storage environments

l   Support wide dynamic, 3D noise reduction, strong light suppression, electronic shutter, digital watermark and other functions; adapt to different monitoring environments

l   Built-in high-efficiency infrared fill light, low power consumption, can capture normally at night

l   Support Micro SD/SDHC/SDXC card storage, up to 256G; support for disconnected network transfer function to prevent video missing

l   Support a variety of abnormal detection, such as motion detection, occlusion detection, storage abnormality, low storage space, network disconnection, IP conflict, MAC conflict, illegal access

l   Support DC12V/AC24V±20% power supply mode, wide voltage design, optional POE power supply

l   Support optional WIFI/4G (choose one) wireless connection and simple wiring

l   Support standard Onvif protocol, national standard GB28181, GA/T1400 protocol, docking cloud service, Alibaba Cloud platform

l   IP67 protection level, anti-surge, anti-static, lightning protection design

Basic parameters

Product   model

STD-934311-L(F3610)

Sensor   type

1/1.8"Progressive   Scan CMOS

Minimum   illumination

0.001Lux (color mode); 0.0001Lux (black and white mode)

Electronic shutter

1/50—1/100,00

1/50—1/100,00   seconds

Wide dynamic range

≥120dB

Signal-to-noise ratio

≥56dB

Fill-in   light

4pcs infrared light intelligent fill-in lights

HD lens

Motorized zoom lens 3.6-10mm

Professional and   intelligent

Smart functions

Capture non-motor vehicles, motor vehicles, and pedestrians

Vehicle identification

Support recognition of license plate, license plate color, body color,   vehicle type and other attributes

Vehicle structuring

Support

Bayonet business function

Support

Coding standard

Video coding standard

H.264BH.264MH.264HH.265MJPEGSVC

Video output bit rate

H.264H:32Kbps13056KbpsH.265:16Kbps7936Kbps

Audio coding

Audio compression   standards: G711a, G711Mu, PCM; audio sampling rate: 16KHz

Image parameters

Max. resolution

400W(2560*1440)

Resolution and frame rate

Main code stream 50Hz: 25fps   (2560×1440, 1920×1080, 1280×720), 60Hz: 30fps (2560×1440, 1920×1080,   1280×720); auxiliary code stream 1: 50Hz: 25fps (1280×720, 704×576,352×288);   60Hz: 30fps (1280×720, 704×576, 352×288); secondary code stream 2: 50Hz:   25fps (1280×720,704×576); 60Hz: 30fps (1280×720,704×576);

Image processing

Saturation, brightness, contrast, and   chroma are adjustable; global metering, local metering, day and night   switching, strong light suppression, backlight compensation, exposure, wide   dynamic, gain, aperture, white balance, 3D noise reduction, fog, Gamma and   Scene mode are adjustable; support image flip, mirror image, video/image   watermark added Gamma Gamma模式

OSD information overlay

Picture and video   OSD settings, name, date, day of the week, address, etc.

Interest area

Support setting 4 areas

Network features

Interface protocol

ONVIF, GB/T28181,   GA/T1400, cloud platform

Network protocol

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,QoS,IPv6

Wireless function

Support optional   WIFI/4G (choose one) wireless connection

Smart alarm

Video occlusion, motion detection, network cable break, IP address   conflict, MAC conflict, SD card error

Video recording

Manual recording; Alarm recording; Timing recording; Motion detection   recording; Face detection recording; Face recognition recording

Hardware interface

Communication interface

1 10/100M adaptive   Ethernet port

Local storage

Micro SD/SDHC/SDXC   card (maximum 256G), support interrupted network transfer

Other interfaces

Alarm: 1 in 1 out;   audio: 1 in 1 out, 1 circuit 485 interface

General specification

Working   environment

-30~60, humidity less   than 95% (non-condensing)

Power input

AC24V/DC12V±20%   power supply (POE optional)

Power consumption

5W (fill-in light is not turned on)

Protection level

IP67 protection level, anti-surge, anti-static,   anti-lightning design

Size (mm)

227(L)*106(W)*100(H) (without antenna)

Bare metal   weight

About 0.5 kg




Product size (unit mm):

image.png   image.png image.png
