l Embedded Linux operating system, safe and stable operation;
l Quad-core A55@1.5GHz high-performance CPU, powerful configuration and extreme experience;
l Independent NPU, supporting up to 2Tops computing power, and embedded with industrial leading deep learning face recognition algorithm;
l Fastest 0.08S extremely fast face recognition, high-precision face recognition;
l Support the largest face recognition mode, support face selection, face enhancement and face exposure, and improve image quality;
l Support the recognition remote control of 0.3~1M, effectively preventing the misrecognition of persons who are far away;
l 2 million binocular cameras, supporting live detection function, effectively solving the problem of deceiving photos, videos and other methods;
l Standard configuration of 30,000 face database, 30,000 card library, 150,000 record storage, and support for batch import and export of data;
l Support Ruiying enterprise cloud office platform, visitor, attendance, and access control mobile phone cloud management;
l Support personnel, equipment, authority group management, and batch registration;
l Support multiple verification methods such as face, under-screen card swiping (IC card, NFC card, ID card physical card), face & swipe card, etc.;
l Support face recognition when wearing a mask, and send reminder of not wearing a mask;
l Support wired, WIFI, Bluetooth, 4G (optional) communication methods, simple wiring;
l Support online and offline working modes;
l Support custom uploading screensaver display, thus creating exclusive advertisements for enterprises;
l Provide comprehensive secondary development technical support;
l Wall-mounted/gate-mounted installation method, exquisite and small appearance, simple and practical function;

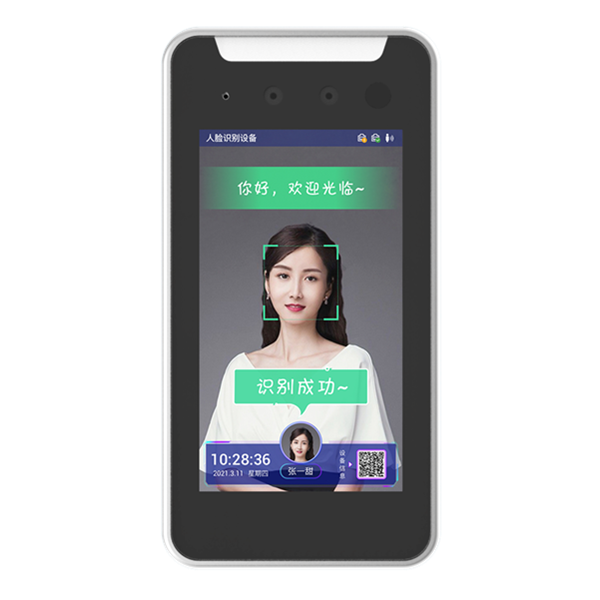

Basic data | Product name | Face recognition terminal |
Product model | STD-5MK052L1-BW | |
Operating system | Embedded Linux system | |
Processor | Quad-core A55@1.5GHZ high-performance CPU | |
Display screen | Size | 5-inch IPS full screen |
Resolution | 720*1280 | |
Camera | Resolution | 200W pixels (1920×1080) |
Camera | HD fixed focus 4mm | |
Wide dynamic | Digital wide dynamic | |
Fill light | Natural light and infrared light | |
Smart functions | Face detection | Maximum face detection |
Storage | 10,000 face base library, 30,000 card library, 150,000 records | |
Recognition mode | Face, under-screen swipe card (NFC card, IC card, ID card physical card), face + swipe card | |
Accurate recognition | 1: N recognition speed ≤0.2S/person, recognition accuracy ≥99.97% | |
Recognition distance | 0.3-1.5M | |
Live detection | Binocular live detection | |
Parameter settings | Black and white list, identification parameters, image settings, information display | |
Alarm management | Blacklist alarms, door overtime unclosed alarms, and anti-dismantling alarms | |
Cloud platform | Ruiying Enterprise Cloud Office Platform, Smart Access Control and Attendance | |
Screen saver | Customized screensaver display, personalized ads | |
Operating mode | Support online and offline work | |
Rich interface | Communication method | Support wired, WIFI, Bluetooth, optional 4G communication |
Network interface | 1 10/100M network adaptive, RJ45 interface | |
Doorlock interface | Door opening signal, door sensor status, switch button | |
Communication interface | 1 RS232 serial port RX, TX | |
Wiegand interface | 3 (D0, D1, GND) support Wiegand 26, 34 | |
USB interface | 1 circuit min USB (touch version supports this function) | |
Reset interface | Supported | |
Alarm interface | 1 alarm output | |
Tamper switch | Supported | |
Audio interface | Built-in speaker, voice broadcast | |
Platform agreement | Active registration, SDK, WebSocket, HTTP reverse | |
General parameters | Equipment power | DC12V/1.5A |
Working environment | Indoor environment and temperature: -20℃～55℃ Humidity: 10～90%RH | |
Protection level | Anti-static, Anti-surge | |
Installation method | Standard wall-mounted installation, optional gate-type installation, support 86 boxes | |
Equipment size | 166(L)*86(W)*24.3(H) mm (Not included bracket) | |
Weight | About 0.5kg |
Product size (unit mm):
