Sports action camera

Sports action camera

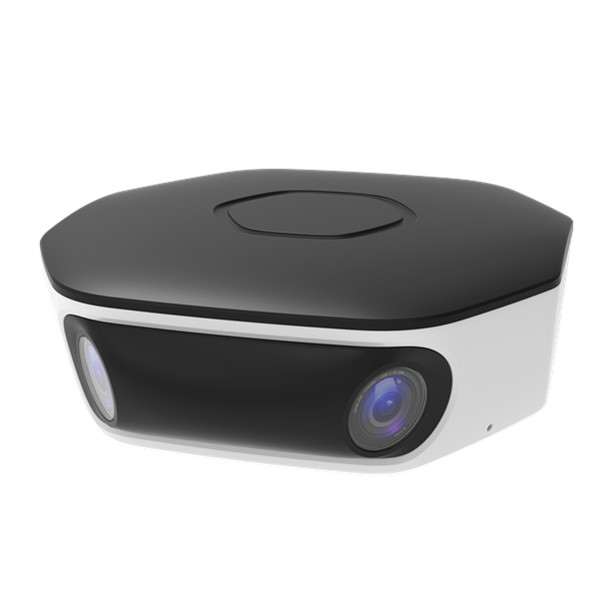

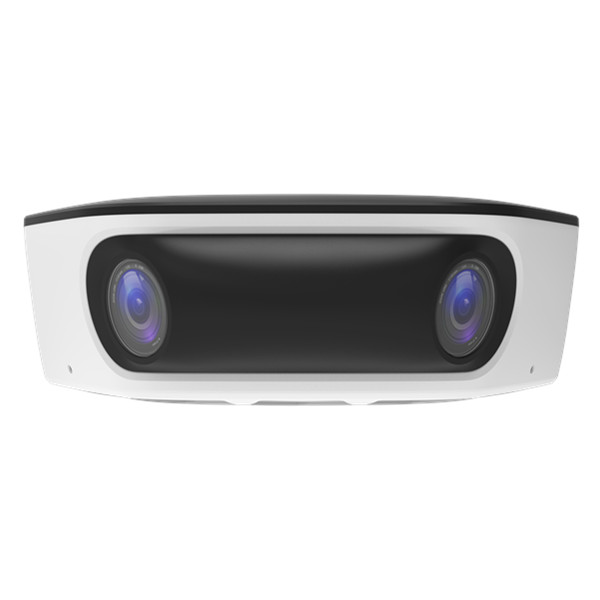

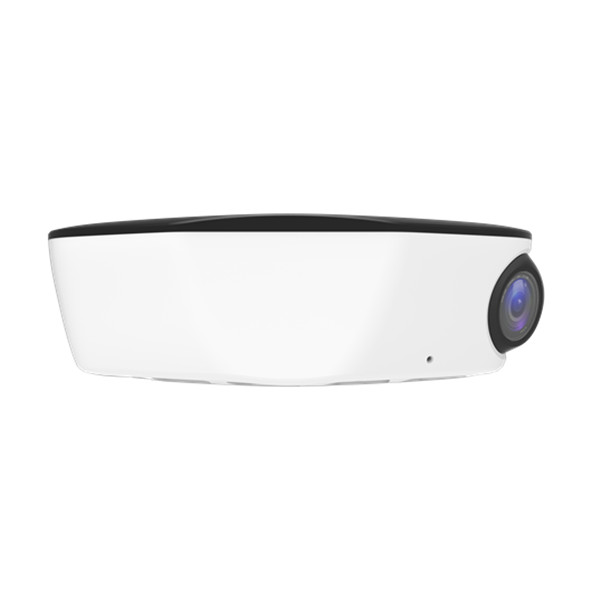

AI SHANG Sports Camera
AS101-H
AI SHANG Sports Camera, can bring customers a broader imaging field of view as well as higher imaging clarity. It can serve a wide range of sports events, including basketball, soccer, badminton, volleyball, table tennis, tennis, paddle and other sports, providing a full range of video shooting, live streaming, recording services, and also automatically generating highlights of the whole game. With AI smart algorithms at its core, the camera ensures a high-quality broadcast experience for every sporting event while significantly reducing costs, providing strong support for the recording and dissemination of sporting events.
Product highlights
Race live streaming
Panoramic view
Tracking
Highlights
  • Product Overview
  • Product Parameters
  • Product Dimension
  • Data download

l 4K binocular splicing, up to 16 megapixels clear real-time image output.

l With a large horizontal 180° field of view, it’s able to cover the entire venue of the shooting effect.

l Integrated basketball and human figure detection algorithms, can automatically carry out  the mirror to follow the shooting, push the near and far shooting, thus realizing the unmanned shooting, to bring the stunning sports live show.

l Have a built-in microphone that can better capture live sound for a more authentic stadium live experience.

l Support half-time live and full-time live two modes switching, can adapt to more game scenarios.

l Supports goal recognition and can automatically clip to generate match highlights.

l Supports rich software services that can initiate live/recorded broadcasts, score overlays, tournament commentary, and support relaying third-party live streaming platforms.

l With AI smart algorithms at its core, it allows every sporting event to deliver a high-quality broadcast experience at a fraction of the cost.

l Support Ethernet, WIFI, Bluetooth multiple network communication modes.

l Supports 64GB of local storage.


Product Model

AS101-H

Basic Parameters

Sensor Type

 1/1.8" 4KProgressive Scan CMOS

Running Memory

4GB DDR4

Body Memory

64GB EMMC

Minimum Illumination

0.001Lux @(F1.2,AGC ON) ,0 Lux with IR

Lens Focal Length

2.8mm fixed focus

Number of Lenses

2

Field of view

Horizontal field of view: 180°, Vertical field of view: 59°

Live Broadcast

Function

Maximum Resolution

16 million

Panorama

Dual 4K splicing 180° panoramic high-definition picture

Live Picture

1080P High-definition picture

Highlights

Automatic generation of goal highlights clips (half-time live mode support)

Live Mode

Left half-time live, right half-time live, full-court live

General Intelligence

Humanoid detection and tracking, basketball detection and tracking, goal judgment

Shooting Techniques

Dribbling mirror follow up shooting, push close and pull far shooting

Network Function

Network Communication

Ethernet, WIFI, Bluetooth

Interface Characteristics

Network Interface

1 RJ45 100/1000M adaptive Ethernet port

Charging Interface

USB Type-C

Reset Button

Support long press reset function

On/Off Button

Power on/off button with running indicator light (ring type three-color light: green, white, red)

Power Indicator

4 green indicator lights

Audio Interface

Built-in MIC

General Norm

Power supply

Rechargeable Li-ion battery power supply (10H), 11.1V 8000mAh,88.8Wh

Power Consumption

≤15W

Operating Environment

'-10~+50°C/less than ≤ 95% RH

Storage Environment

'0~+60°C/less than ≤ 95% RH

Protection Class

IP54

Housing Material

PC + Hardware Material

Dimension(mm)

179.5(L)*202.9(W)*66.5(H)

Weight

Approx. 1.4 kg (bare weight), approx. 2.2 kg (packed weight)




  • 1、Product Parameters

    AI SHANG Sports Camera
